Specifications
Description

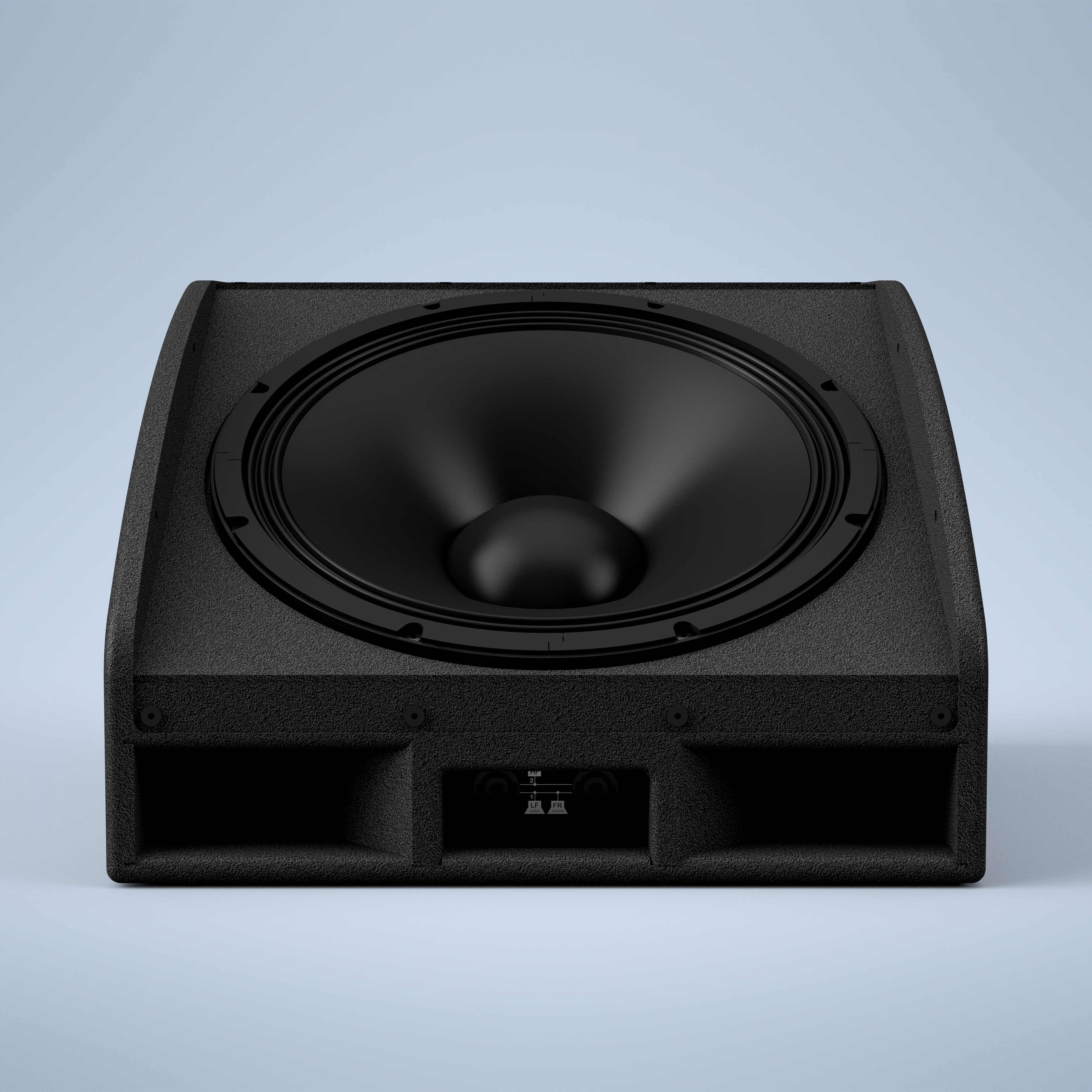

- 13.5″ bass reflex design combined with 3″ compression driver
- Coaxial design
- Maintained low frequency performance at full power
- Monitor angle(s) 30 degrees and 60 degrees

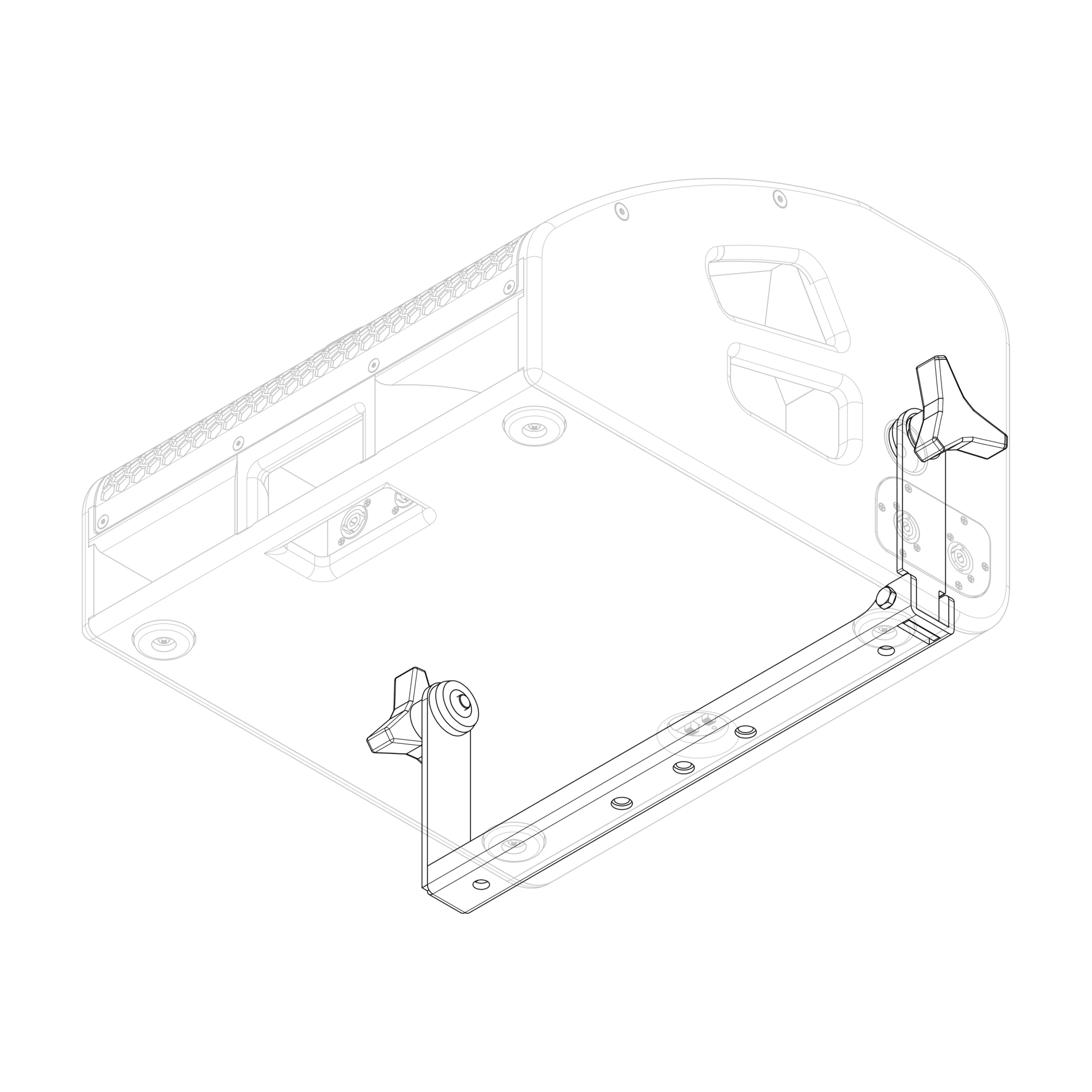

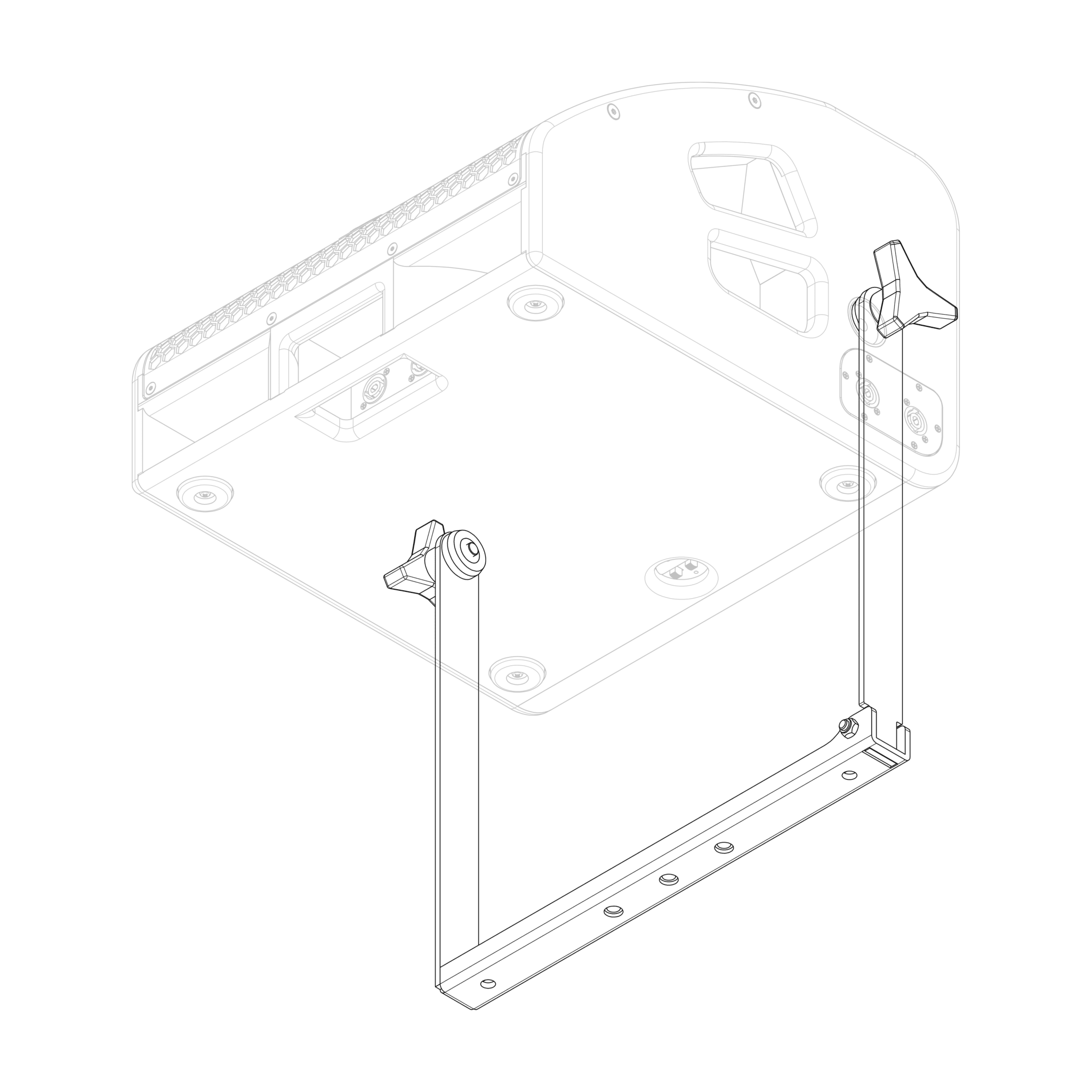

- Tool free mountable U-bracket

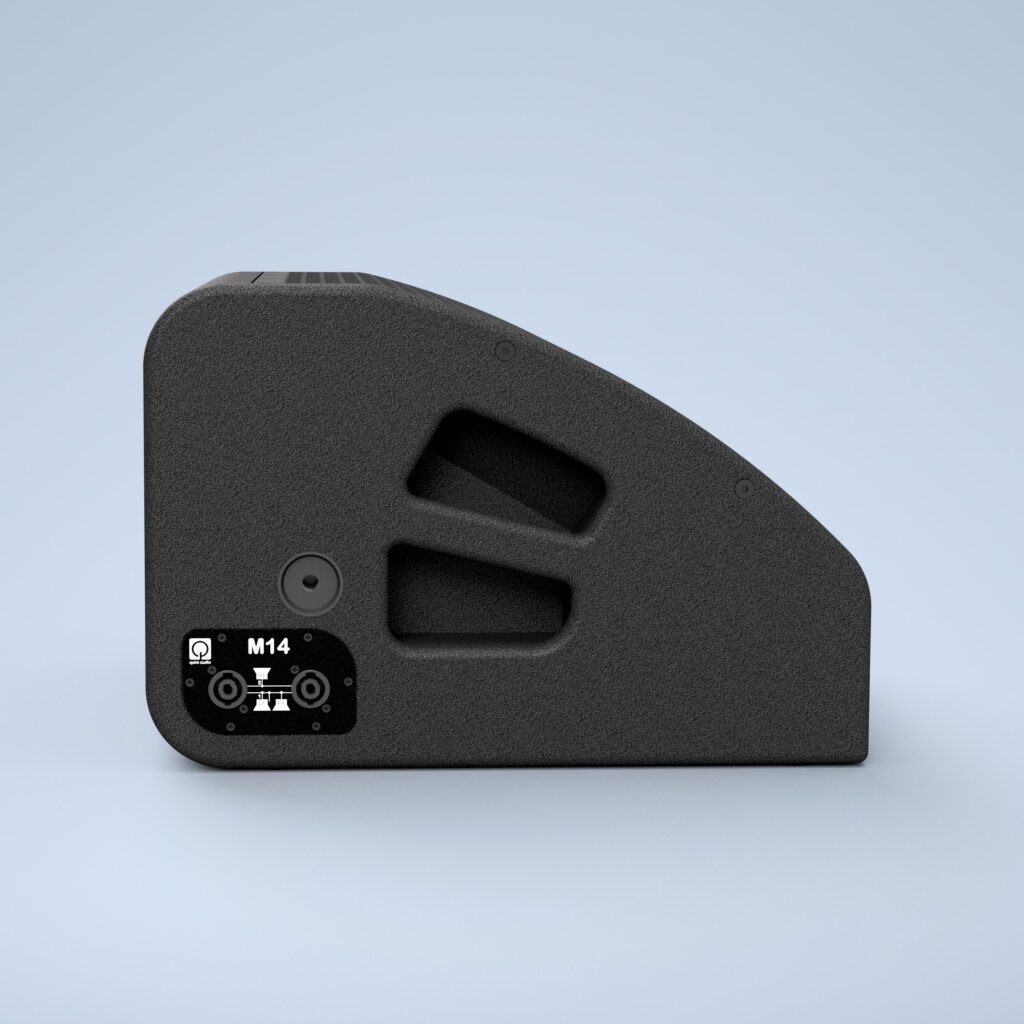

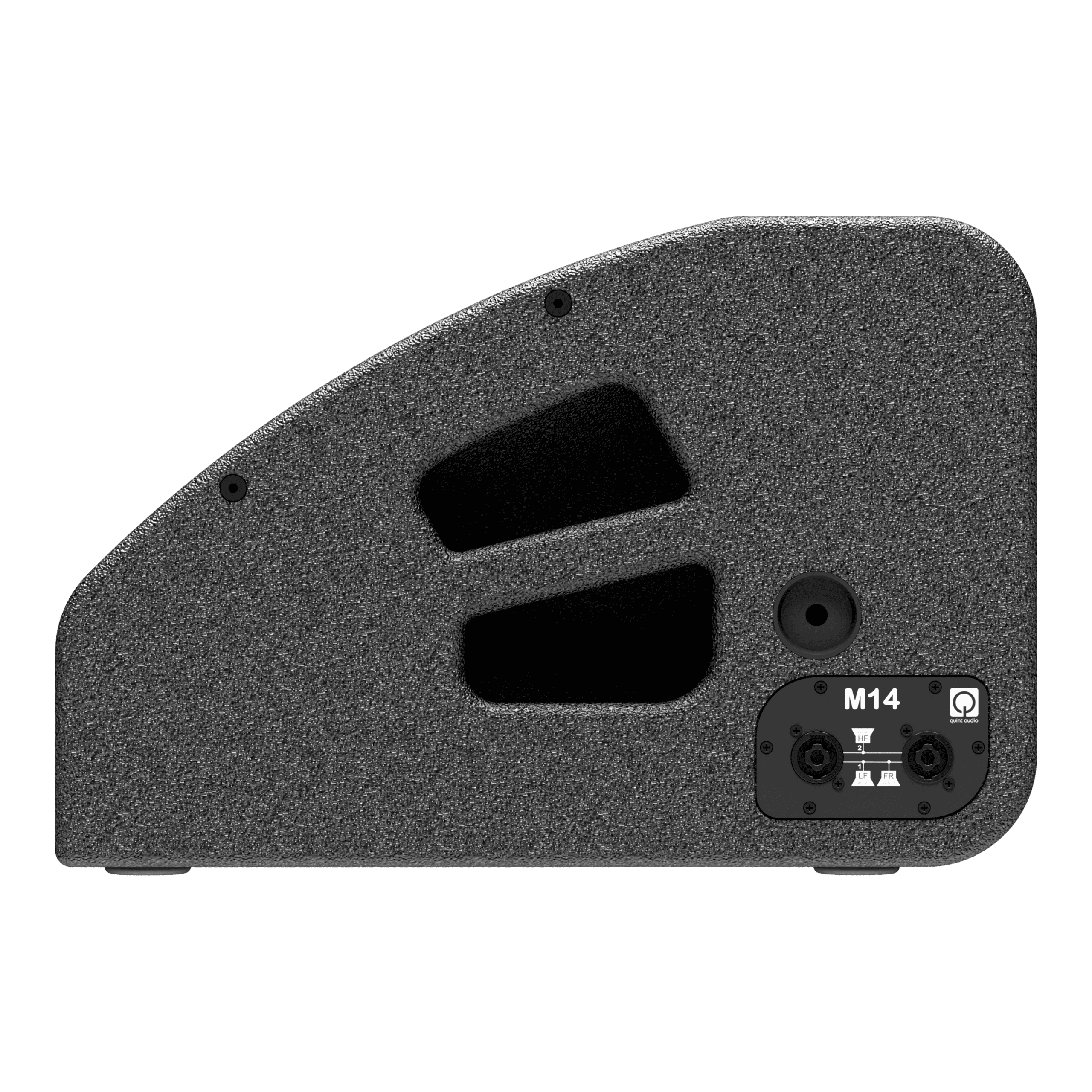

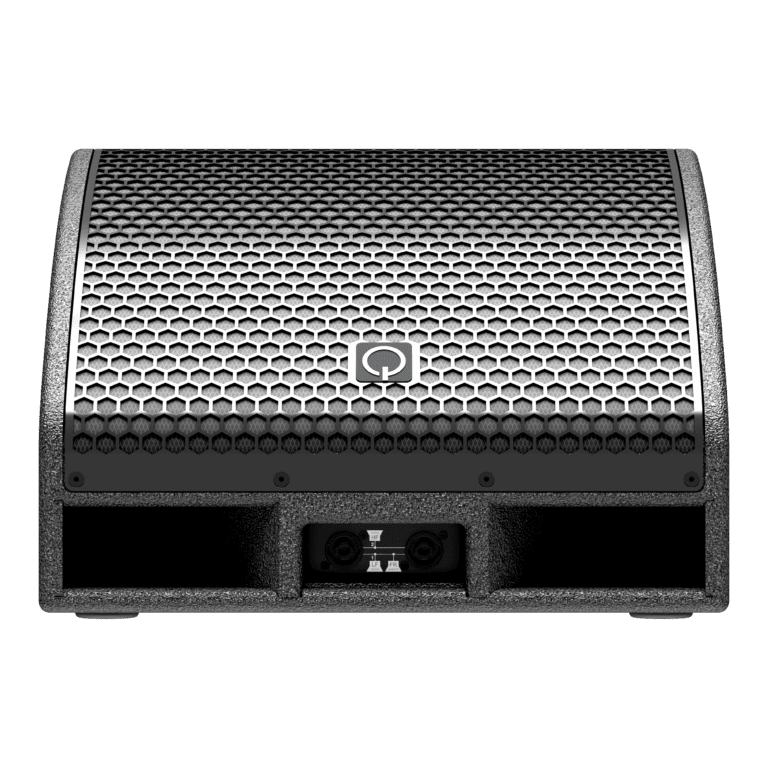

- 2x NL4 on the front, 2x NL4 on the left, 2x NL4 on the right
- 2x ergonomic handles, 1x on the left, 1x on the right
- Rubber feet for stability on the bottom
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
Application area
Coaxial monitor
FOH monitor
fill
live music
mechanical music
vocals
speech
Specifications
| Model | M14 |
| Filter | 1 channel DSP control |
| Loudspeaker components | 13.5"/3" |
| Impedance | 8 Ohm |
| Peak SPL* / freq. range (-6dB) | 134dB / 59Hz-16kHz |
| Max SPL* / freq. range (-6dB) | 116dB / 59Hz-16kHz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | 80° conical |
| Connections | 6x SpeakOn 4 |
| Weight | 16 kg |
| Size (WxHxD) | 425 x 300 x 445mm |
Advised electronics
P9 processor
P5 Processor
A1 amplifier
A4 amplifier
A6 amplifier
A23 amplifier
A41 amplifier
A42 amplifier
