Specifications
Description

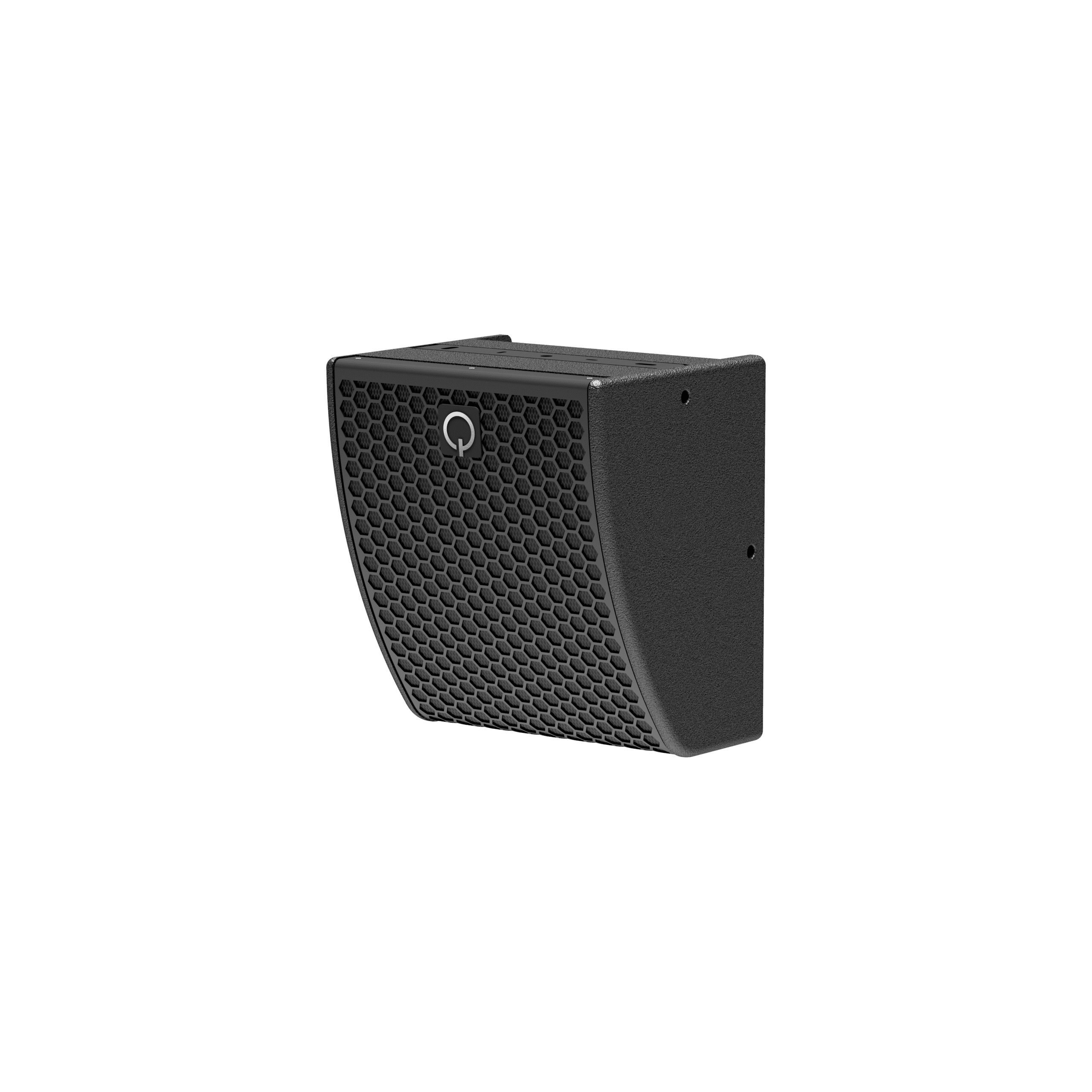

- 6.5″ bass reflex design combined with 1.7″ compression driver
- Coaxial design
- Extended low frequency response at reduced power
- Integrated U-brackets for top and rear mounting
- 2x phoenix connectors on the back
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- fill for larger systems
- short throw applications
- infill
- monitoring
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | C6 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 6.5"/1.7" |
| Impedance | 16 Ohm |
| Peak SPL* / freq. range (-6dB) | 125.5dB / 100Hz-20kHz |
| Max SPL* / freq. range (-6dB) | 107dB / 100Hz-20kHz |
| Max SPL -10dB / freq. range (-6dB) | 97dB / 65Hz-20kHz |
| Max SPL -20dB / freq. range (-6dB) | 87dB / 60Hz-20kHz |
| Dispersion (HxV) | 80° conical |
| Connections | 2x Phoenix 2,5/ 2-ST-5,08 |
| Weight | 6kg |
| Size (WxHxD) | 235 x 270 x 200mm |
Advised electronics
Downloads
Rigging
-
C5-H1topIncluded built-in top bracket
-
C5-H1backIncluded built-in back bracket
