Specifications
Description
- 2x 21″ double chamber bass reflex design
- Maintained low frequency performance at full power
- Mounting points for fixed installation

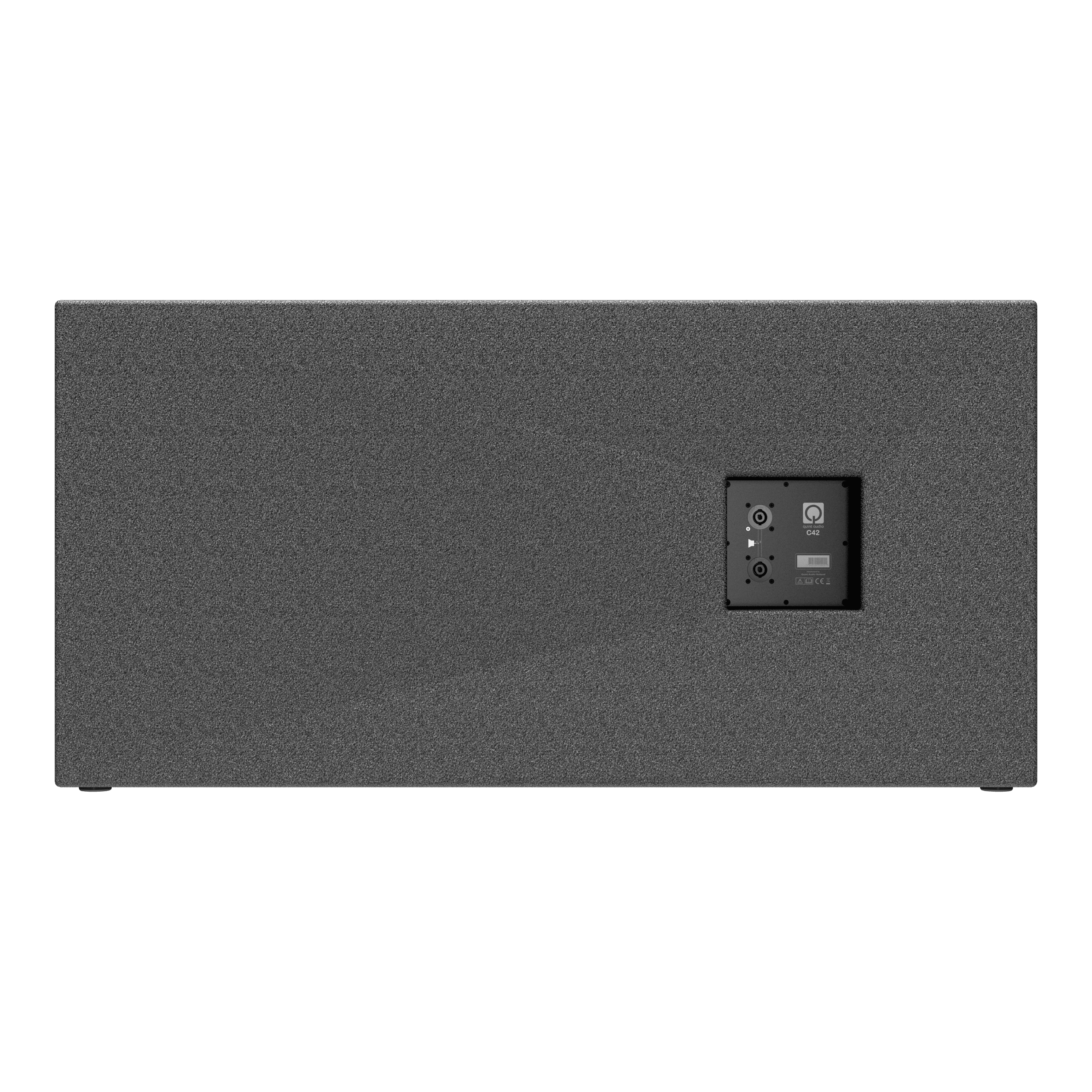

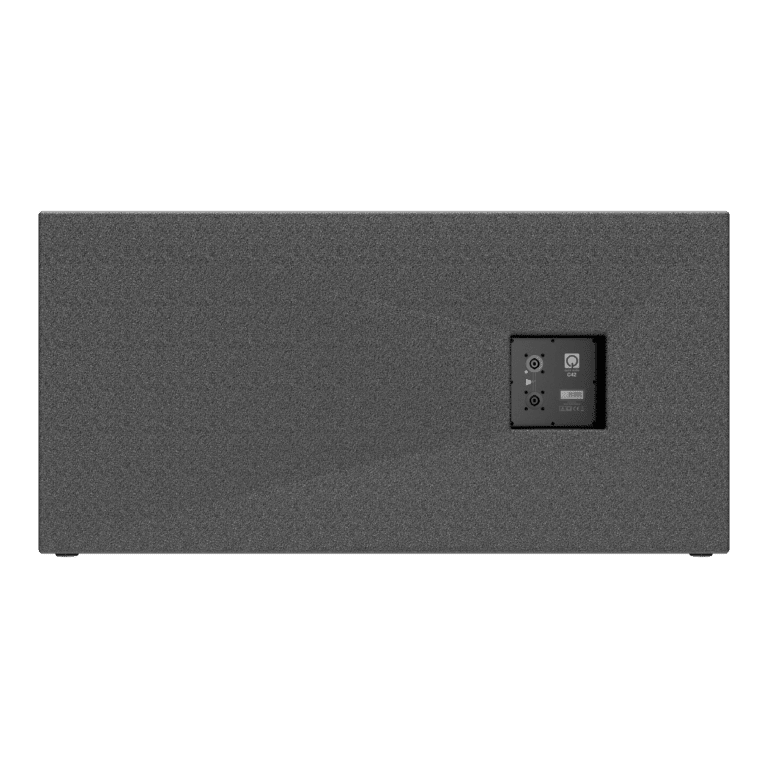

- 2x NLT4 on the rear
- Rubber feet for stability on the bottom (and side)
- Truck size cabinet for efficient transportation
- All Quint Audio loudspeakers are designed for use in combination with Quint Audio processors & amplifiers
- All Quint Audio loudspeaker presets are matched in level and phase at the crossover frequency for easy mix & match
- Factory system presets available
- Measurements are conform to AES75 and carried out with P9 processor and A4 amplifier. Values are scaled to 1m free field.
Application area
- Subwoofer for medium to large systems
- Cardiod setup
- Ground stacked subwoofer system
- Horizontal subwoofer array
- PA
- live music
- mechanical music
- vocals
- speech
Specifications
| Model | C42 |
| Filter | 1-channel DSP control |
| Loudspeaker components | 2x21" |
| Impedance | 4 Ohm |
| Peak SPL* / freq. range (-6dB) | 146dB / 31Hz-100Hz |
| Max SPL* / freq. range (-6dB) | 135dB / 31Hz-100Hz |
| Max SPL -10dB / freq. range (-6dB) | N/A |
| Max SPL -20dB / freq. range (-6dB) | N/A |
| Dispersion (HxV) | Omni |
| Connections | 3x 4 pole speakON |
| Weight | 124kg |
| Size (WxHxD) | 1180 x 590 x 1000mm |
